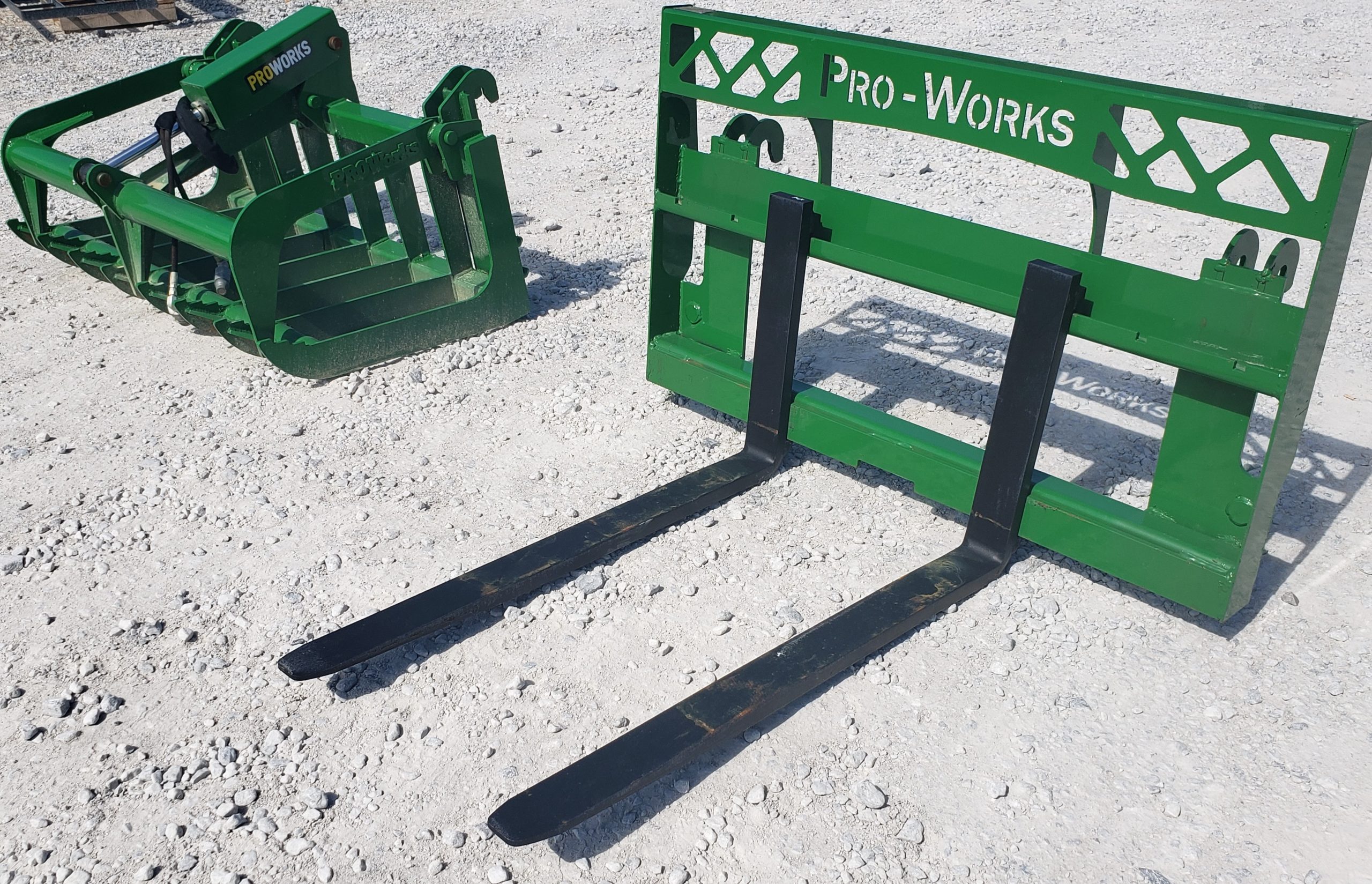

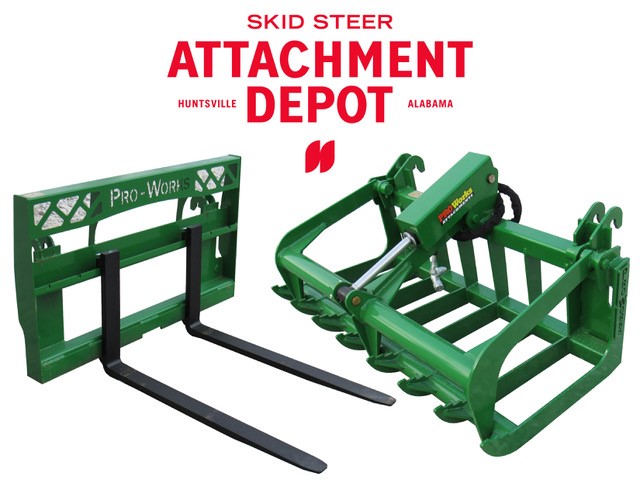

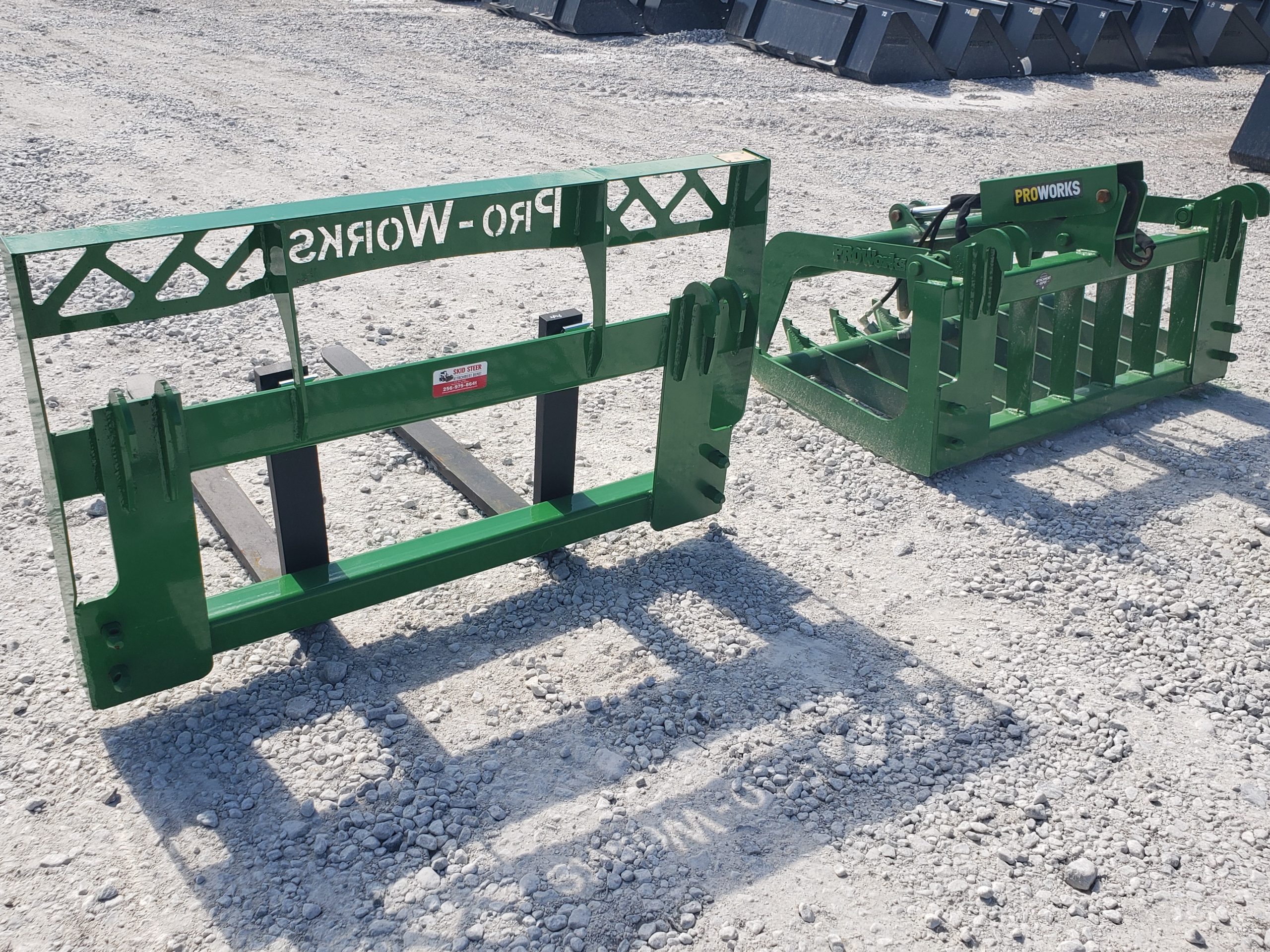

This listing is for a combination package featuring a 48″ Pro Works root grapple and a 42″ long set of Pro Works pallet forks for a John Deere compact farm tractor loader. The root grapple is a compact design with many heavy duty features. This model features grease points on all pivot points and a heavy duty 2″ x 10″ cylinder as found on our heavy duty grapples. The 42″ long pallet fork set makes your machine extremely versatile allowing you to load and unload pallets. Top pin set fits H120, D120, 210, 200x, 200cx, 300cx, 300x, 305, 400x, 400cx, 410, 419, 420, 430, 440, & 460 series loaders. Bottom pin set fits 500, 510, 520, 521, 540, 541, & 542 series Ag loaders. This is a great attachment for moving brush or debris with your loader. This grapple is perfect for the weekend warrior.

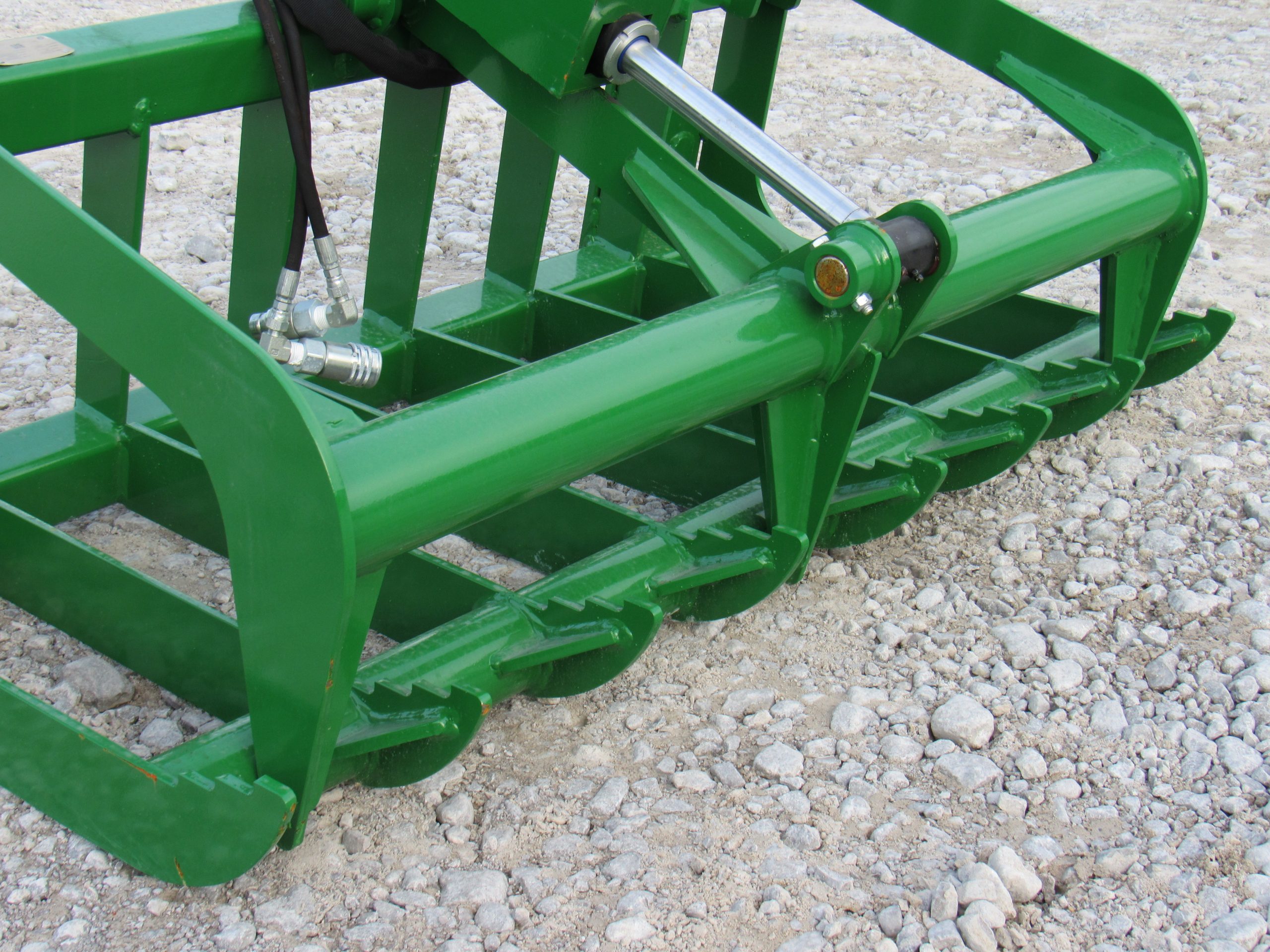

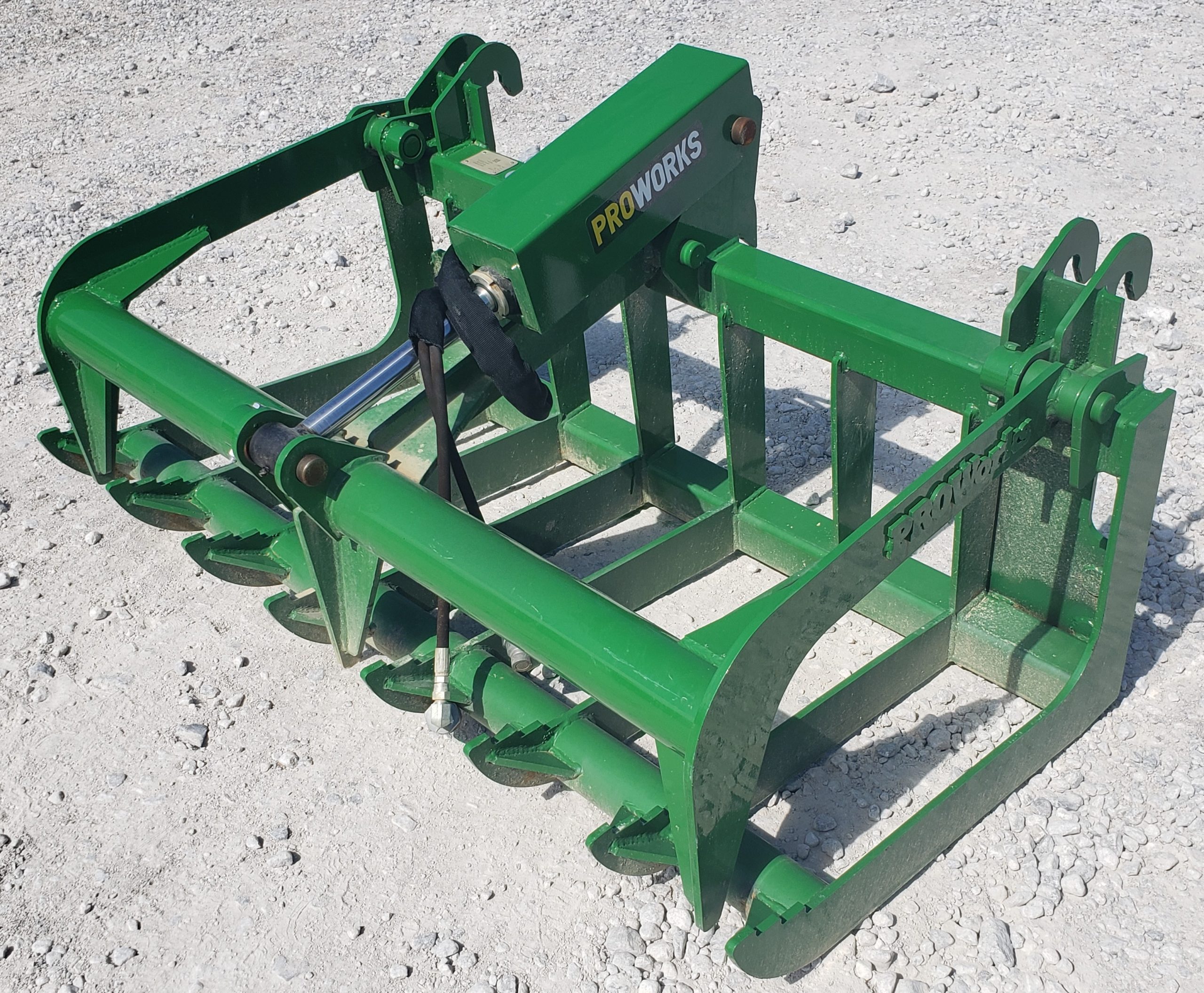

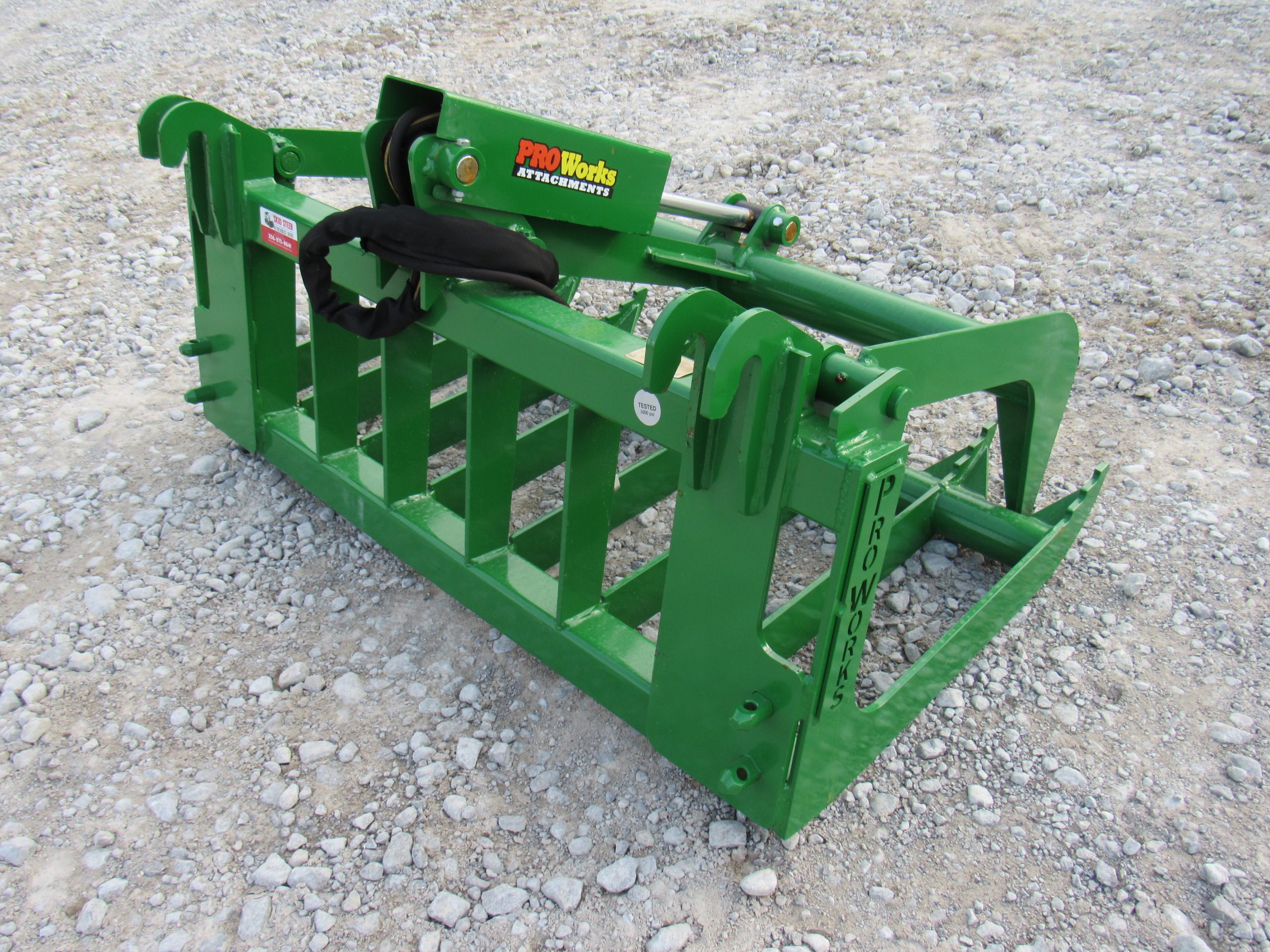

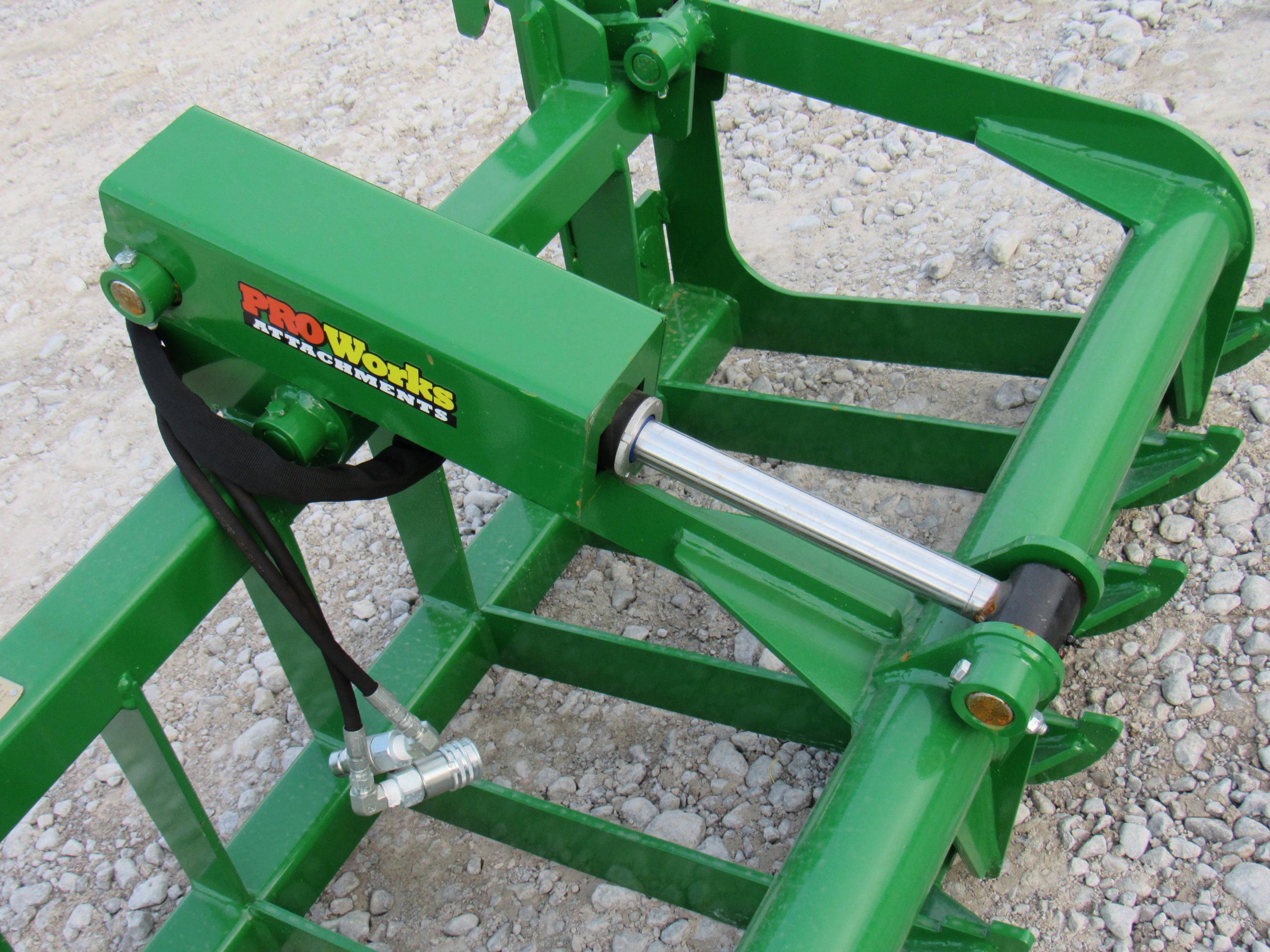

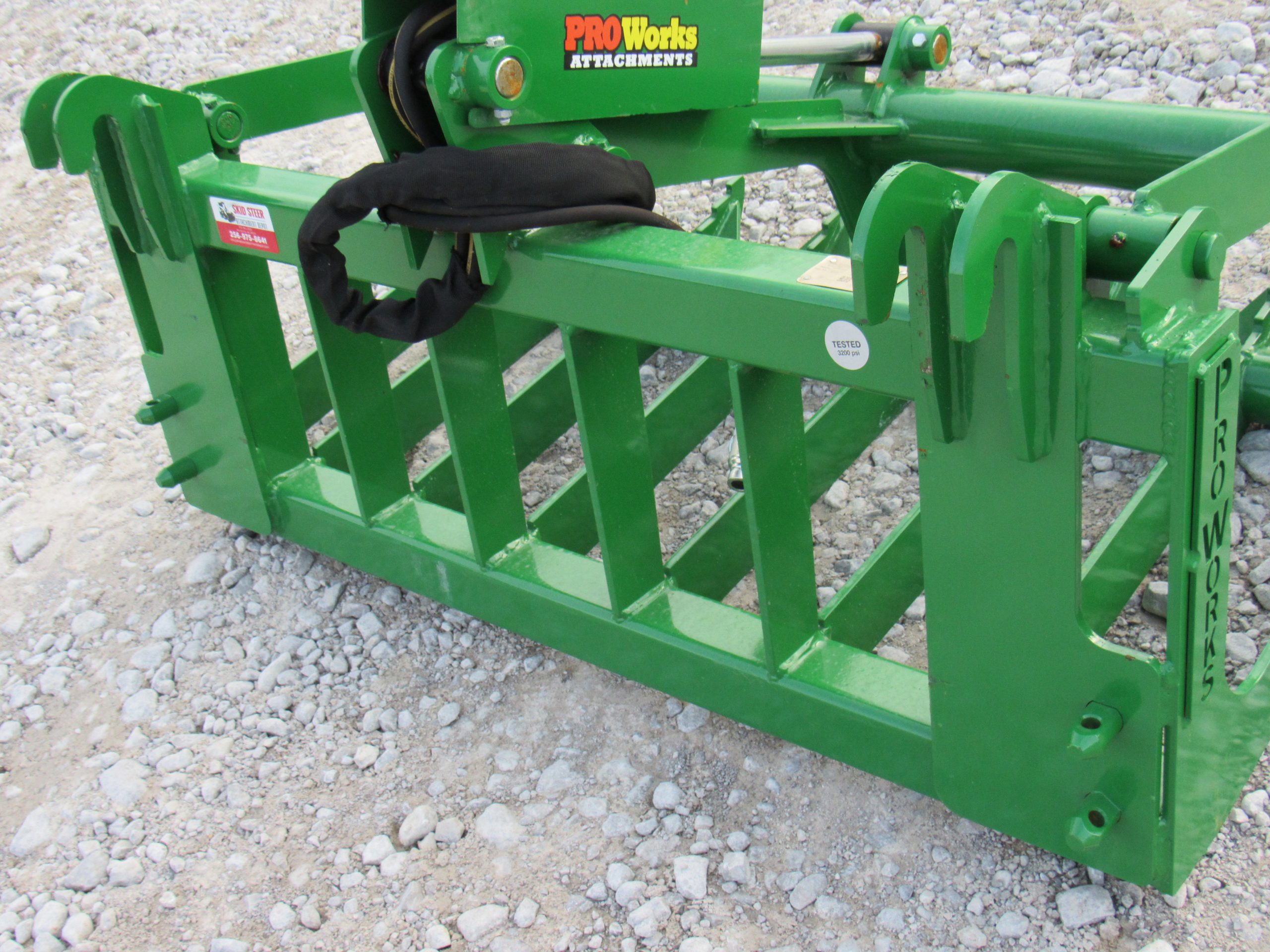

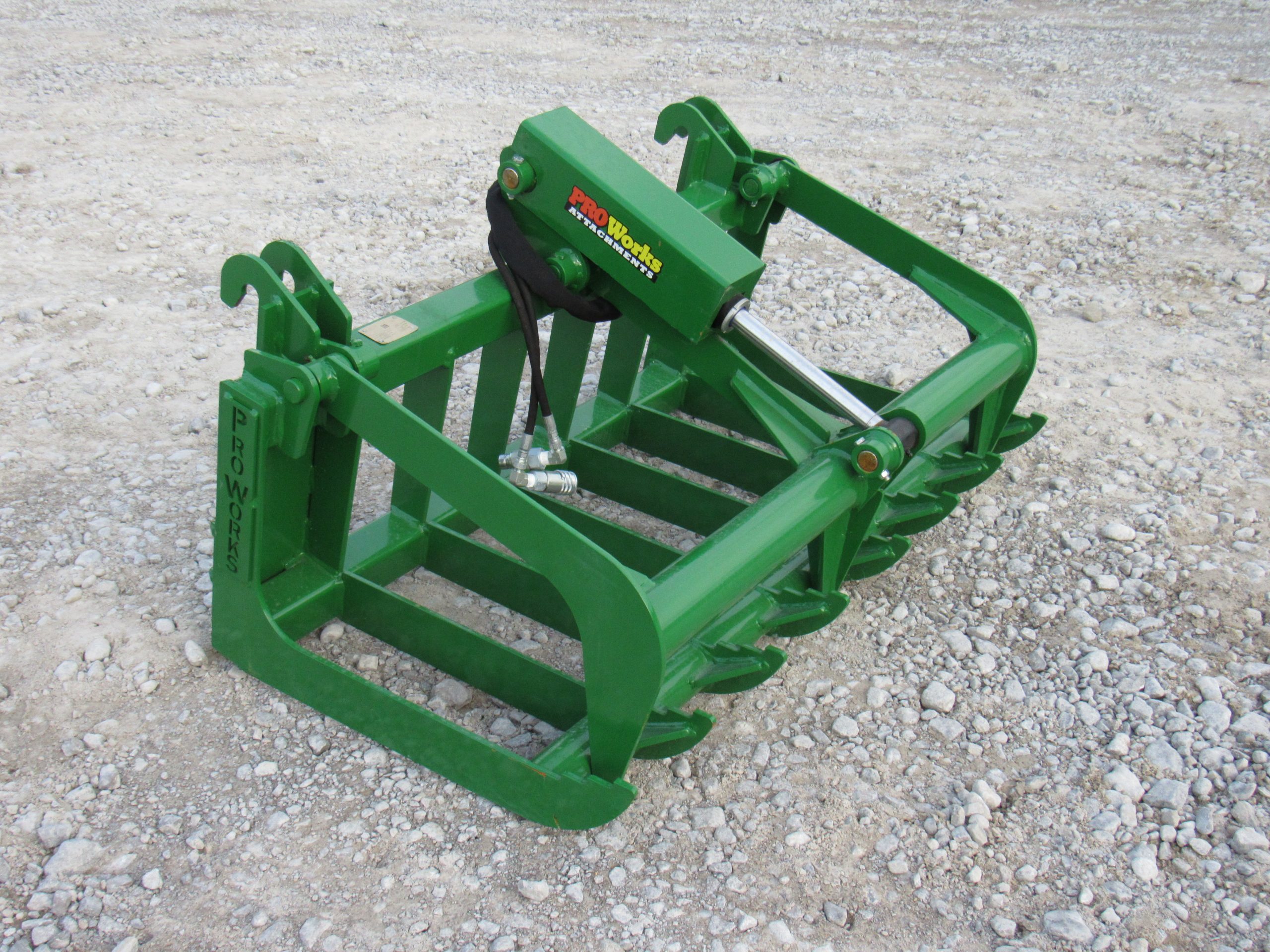

Root Grapple Specifications:

Weight – 375 lbs.
Width – 50″
Grapple Opening – 36″ Wide
Tine Spacing – 4.5″
Tine Thickness – 3/8″
Grapple Tong Width – 32″
Interior Bucket Depth – 26″
Grease Fittings at all Pivot Points
Cylinder – 2″ bore X 10″ Stroke
Couplers – Standard 1/2″ Pioneer Couplers with 90 Degree Fittings
Paint – Powder Coated Green Paint
Steel – A36 Metal
Made in the USA

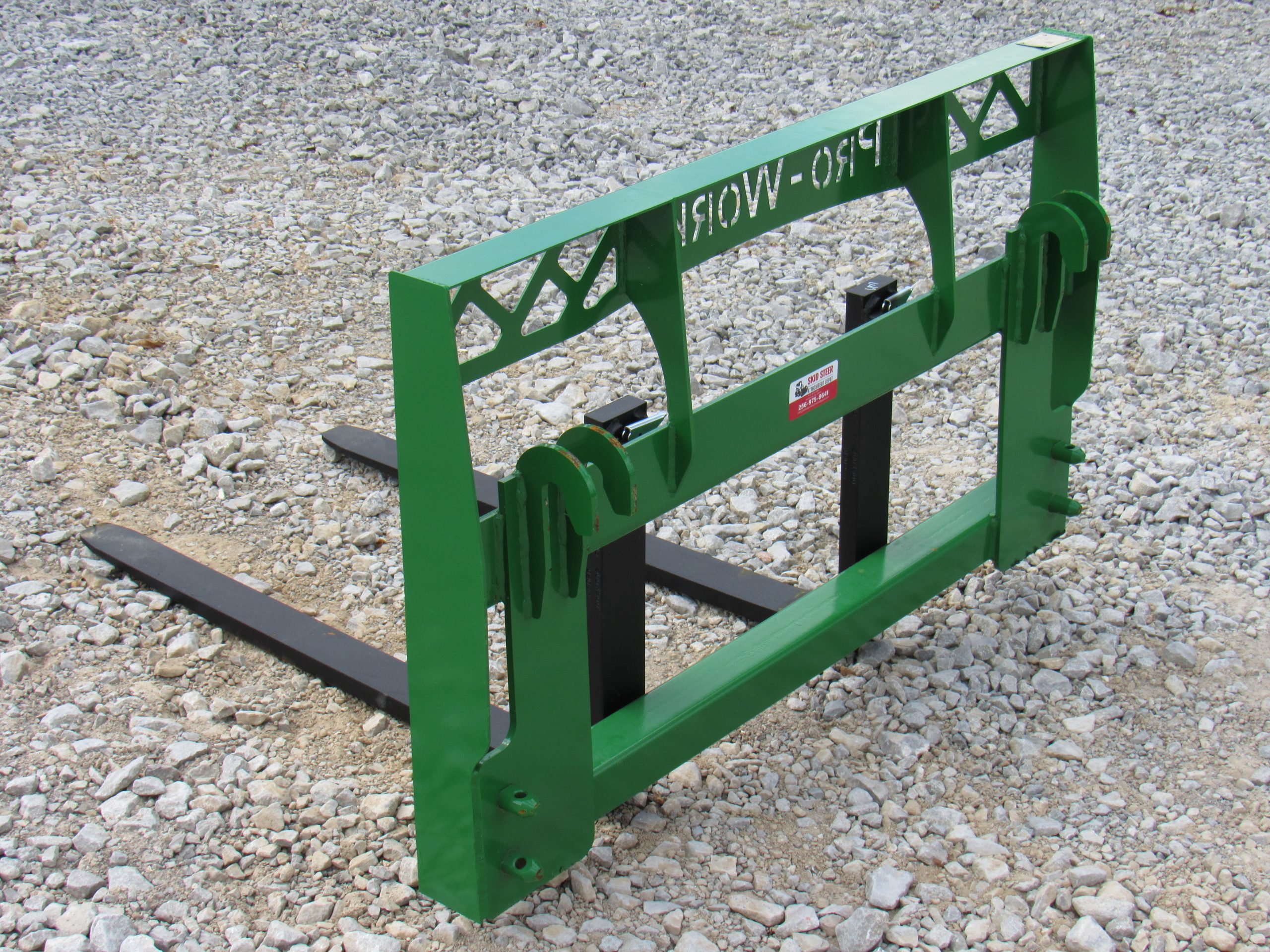

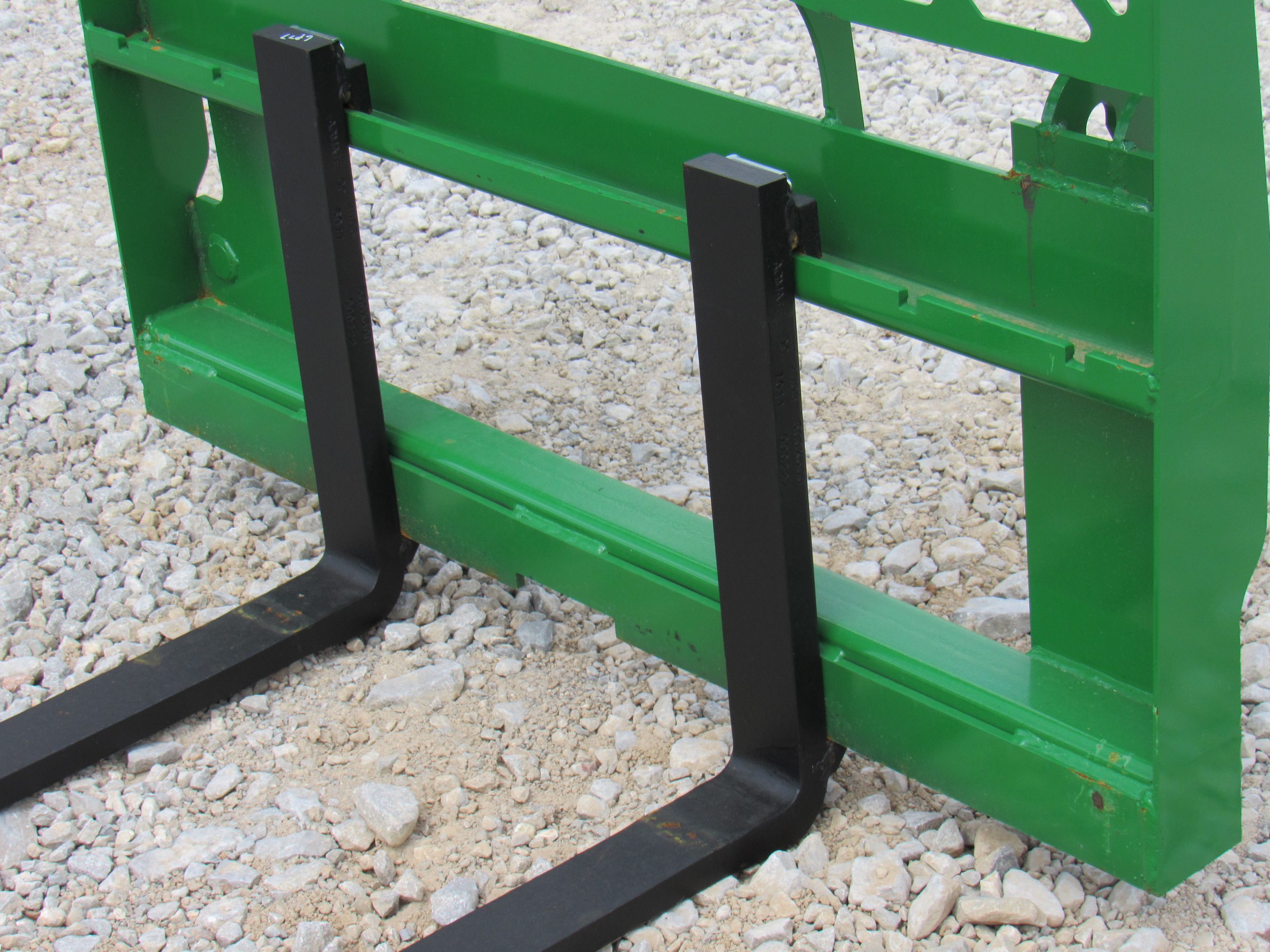

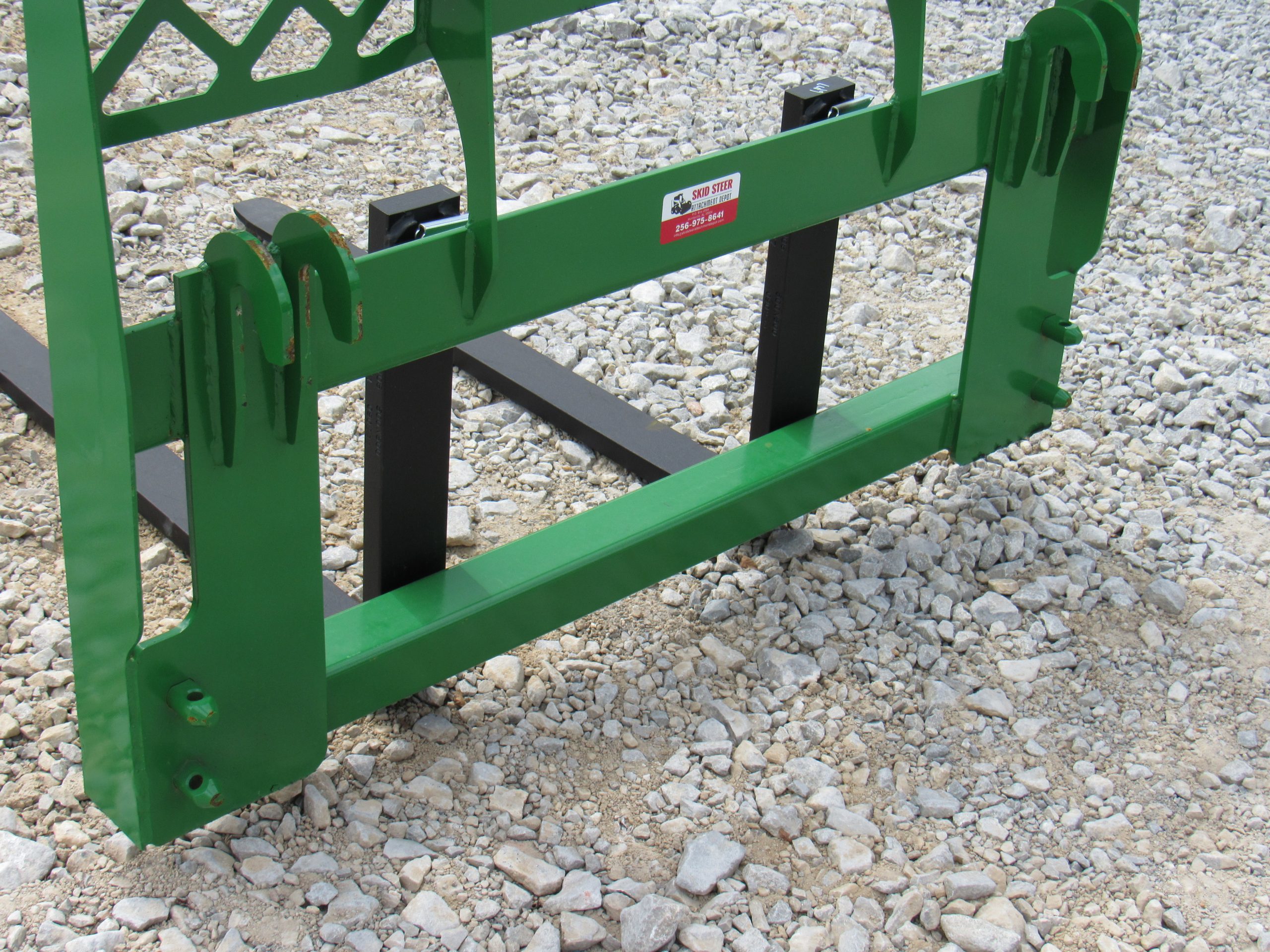

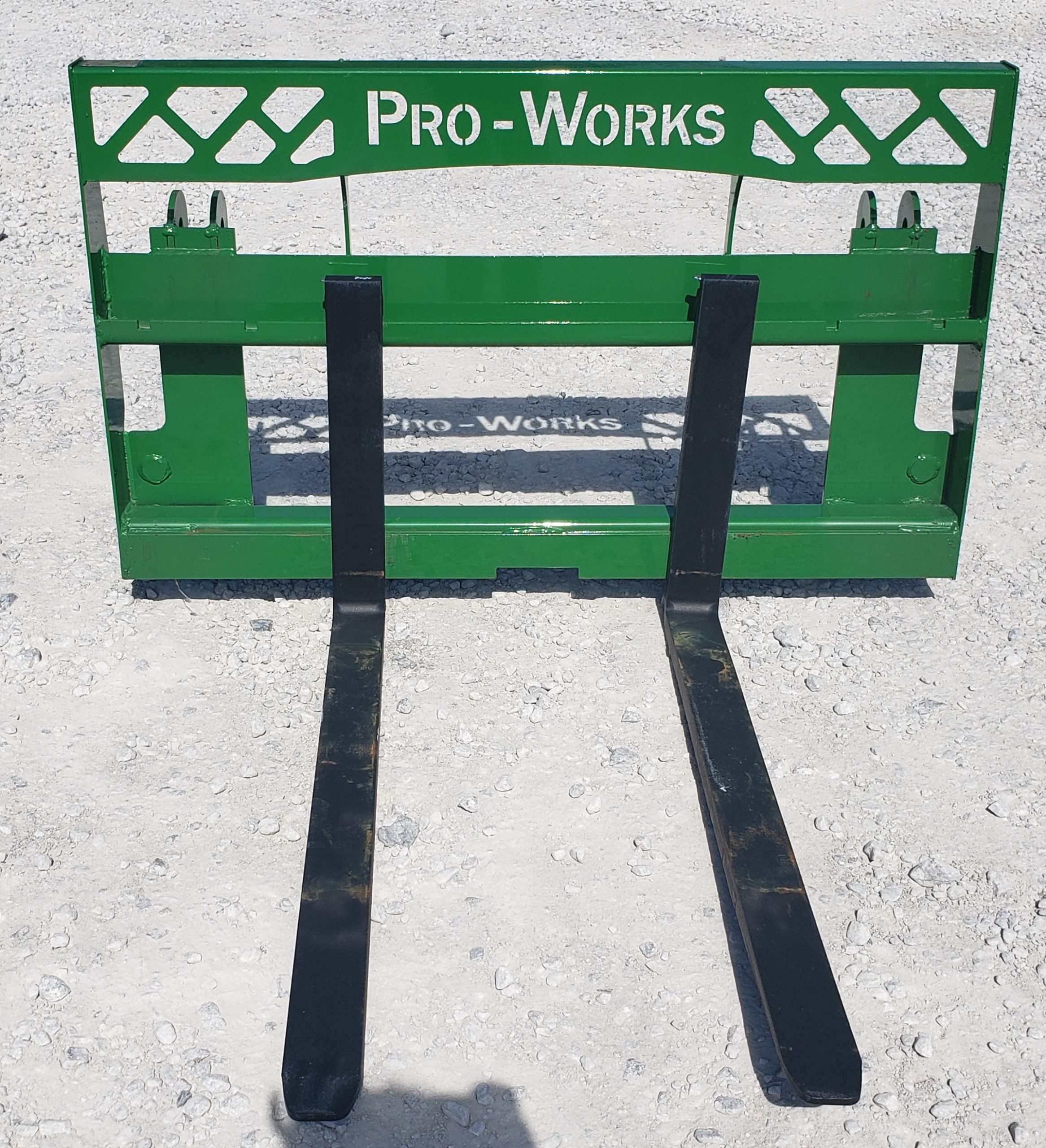

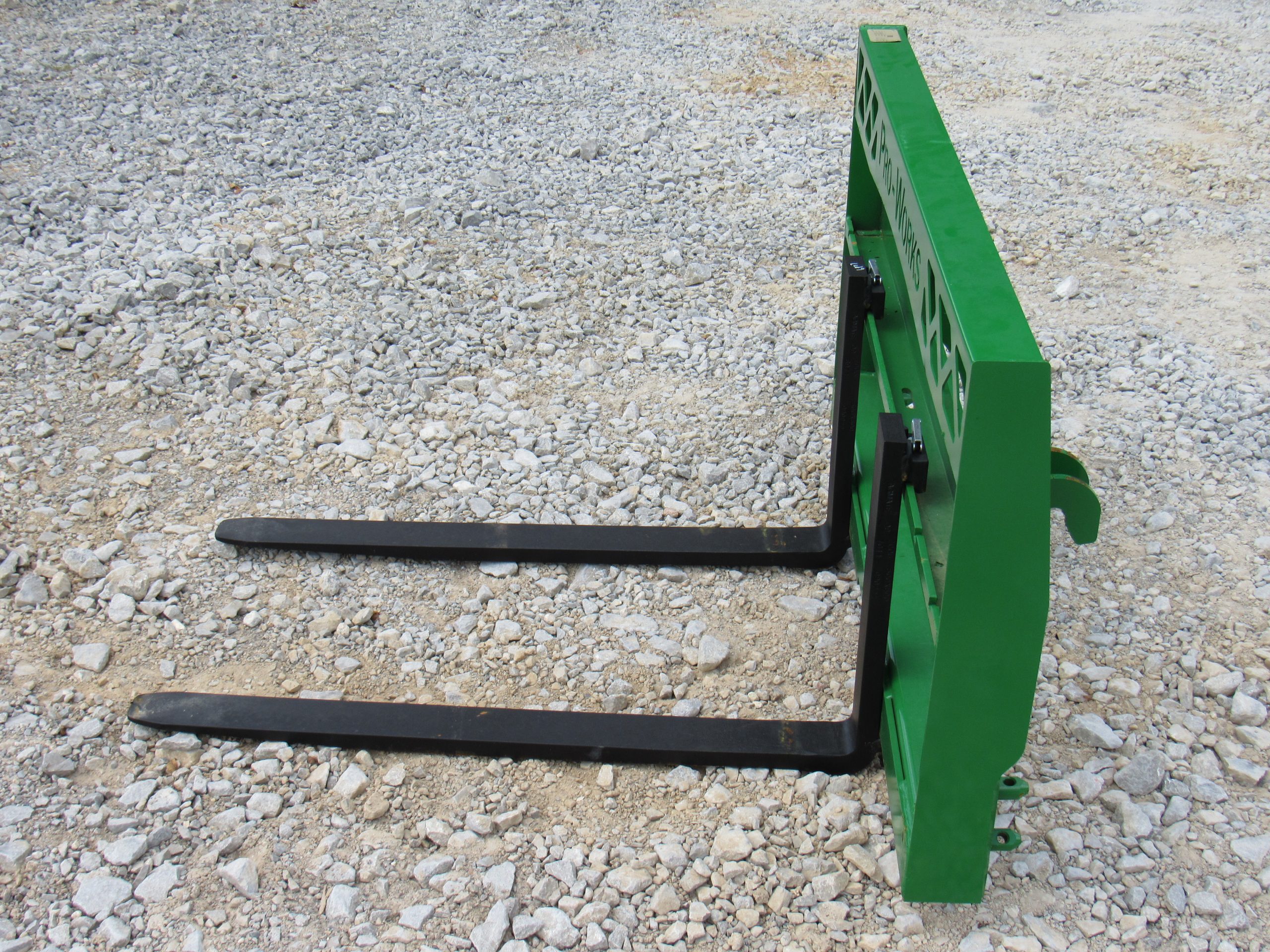

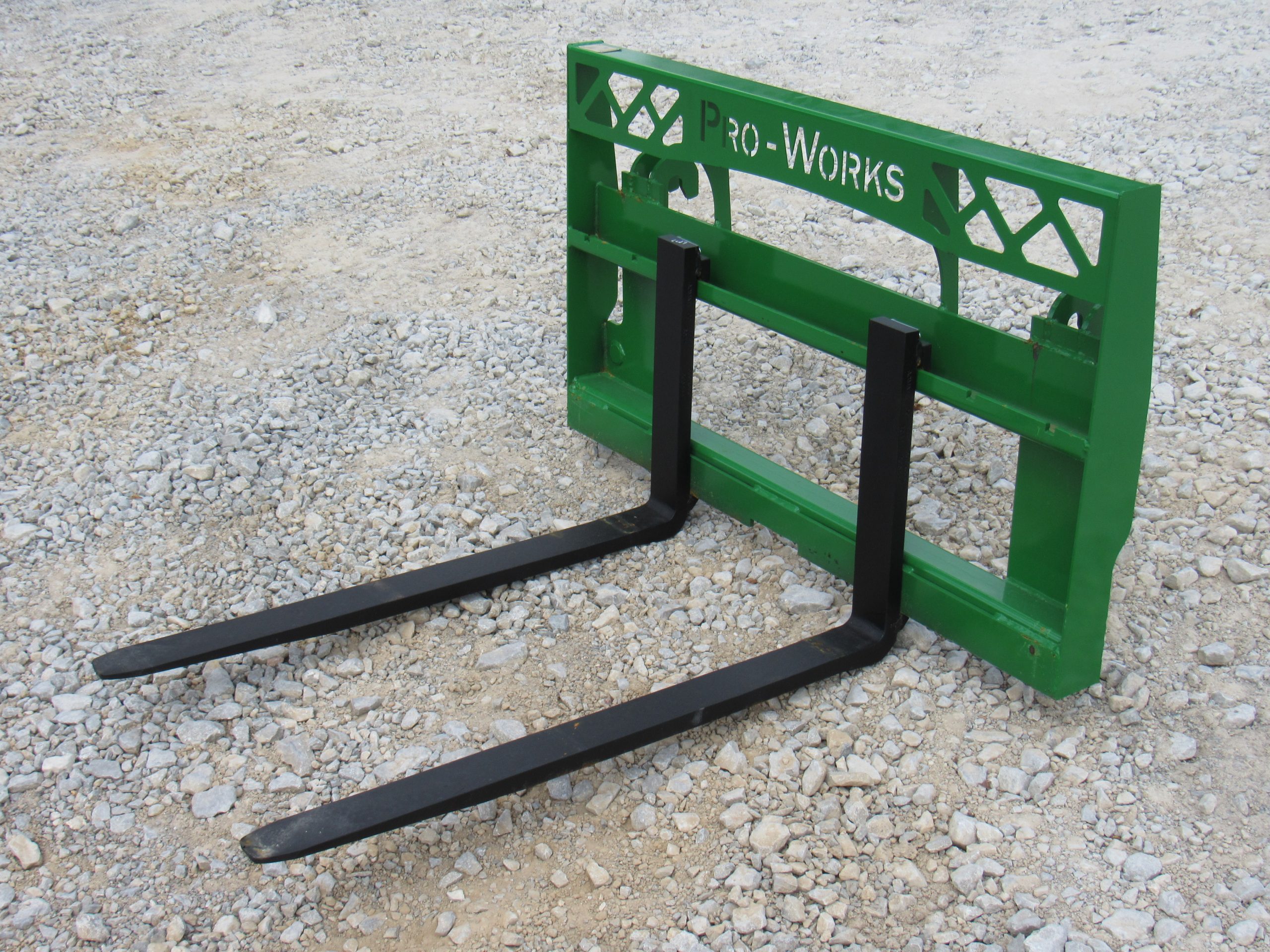

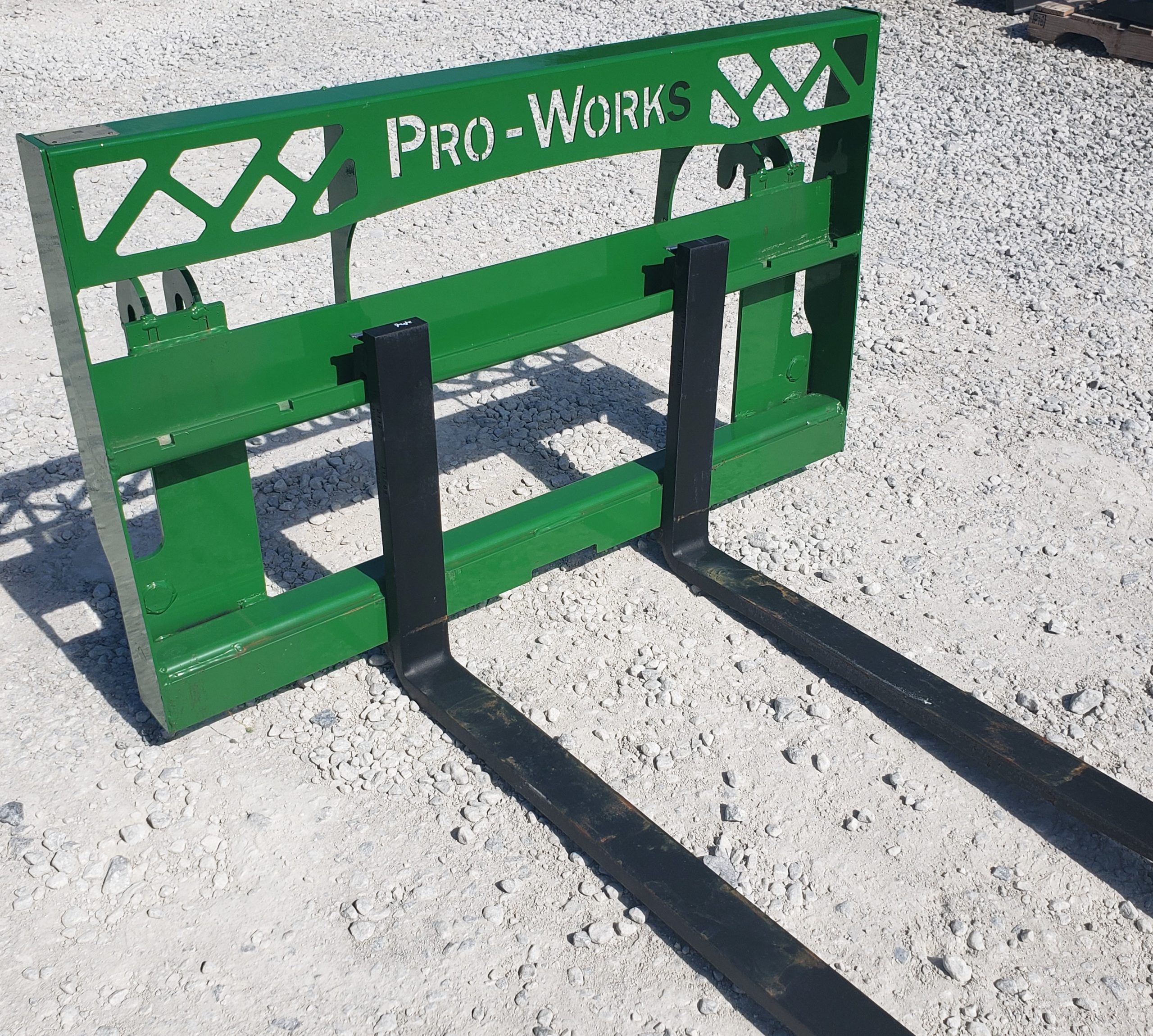

Pallet Fork Specifications:

Weight – 350 Pounds

Fork Length – 42″ Long

Fork Capacity – 2,200 Pounds

Fork Blade Dimensions – 1.18″ Thick x 3.15″ Wide (Per Fork)

Fork Frame Width – 45″ Wide

Frame Made out of A36 Steel

Powder Coated Green Frame

Made In the USA
