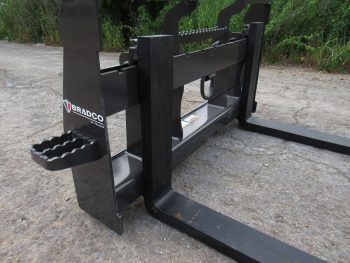

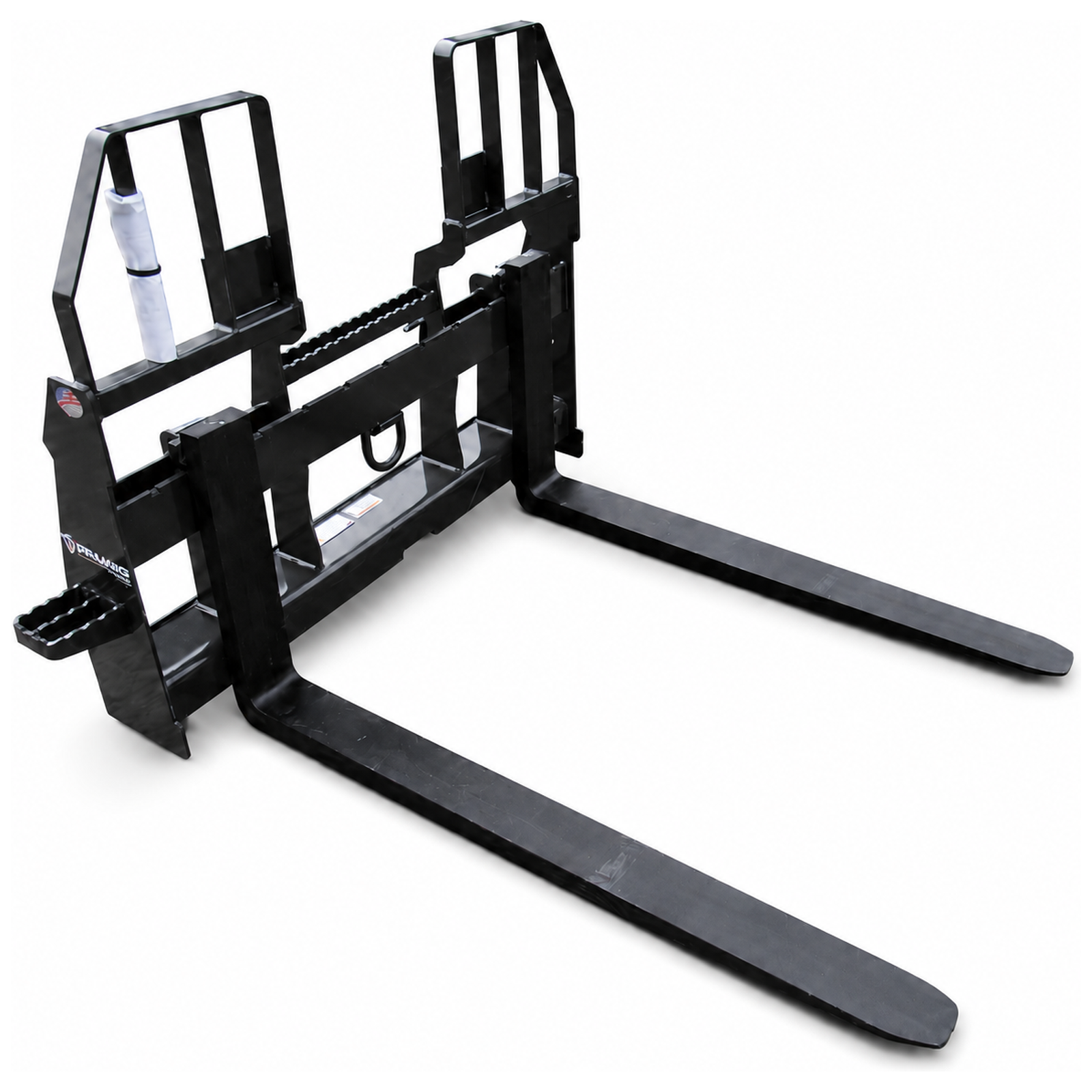

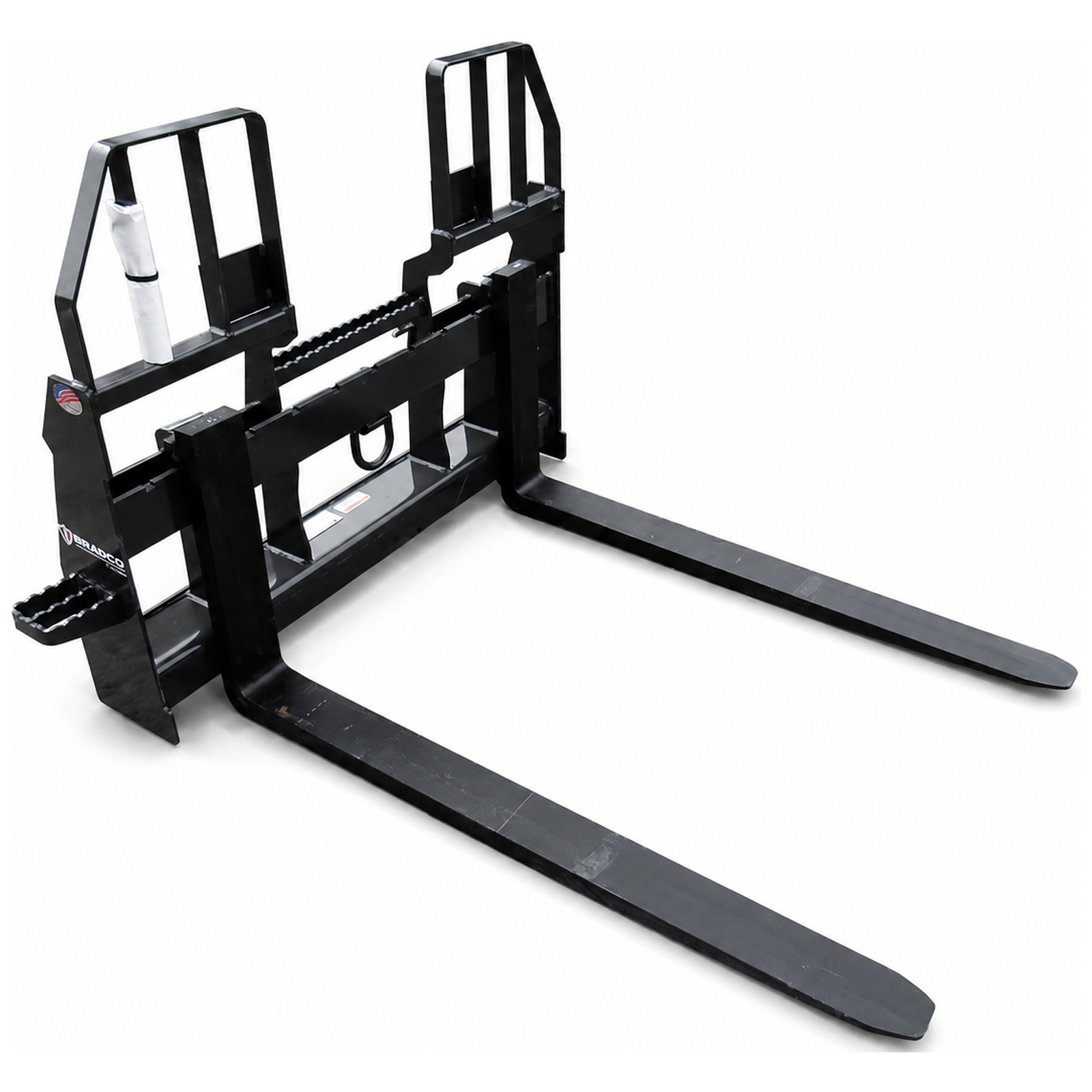

This listing is for a new Bradco walk-thru single step pallet fork frame with 48″ long 5,500 pound rated pallet forks. This frame features an open cavity in the center of the brick guard for easy access into the cab of your loader. The frame also features one bolt on side step that can be bolted to either side of the frame. This is a very heavy duty frame with a capacity of 5,500 pounds! This is a patented design that offers excellent visibility and includes a load securing “D” ring.

Specifications:
Weight – 433 Pounds
Frame Model – 30947-0022
Pallet Fork Blade Length – 48″
Fork Thickness – 1.57″ Thick
Fork Blade Width – 4″
Fork Capacity – 5,500 Pound Capacity
ITA Category II Fork Mounting – 16″
Minimum Tine Spacing – 9″
Maximum Tine Spacing – 44″

Features:
Heavy Duty D Ring
Open Cavity in the Center of the Frame for Easy Cab Access
Bolt On Side Step
Fork Blades are Heat Treated
Powder Coated Paint
